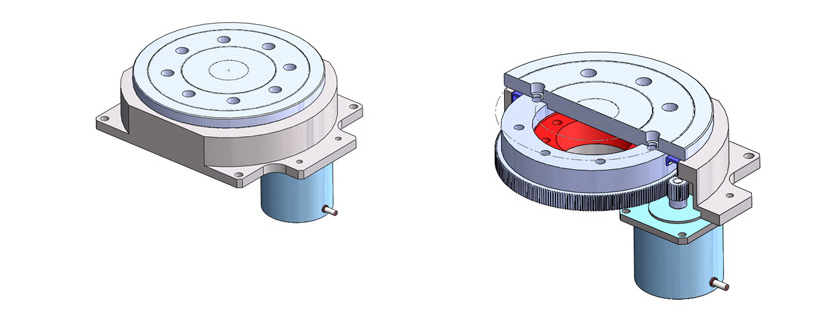

Rotary Table

Design-Tek Inc. designs custom rotary table per customer requirements. Mechanical drive mechanisms can be worm or spur gear types. Bearing systems can have deep groove bearing systems, cross roller or gothic arch style bearings depending on load and positional stiffness.

PD Series Planetary size 17 gearhead

Custom Rotary Tables with the Standard Features

  • Choice of table diameters
  • Ball bearings are standard
  • Sealed housing
  • Precision hobbed gears
  • Step motors are standard
  • Aluminum table and housing - anodized

Optional Features:

  • Encoder on rear of step motor
  • Large hole in center of rotary table for air lines, etc.
  • Cross roller bearings to increase table rigidity
